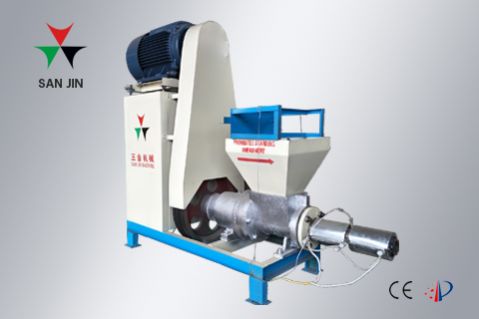

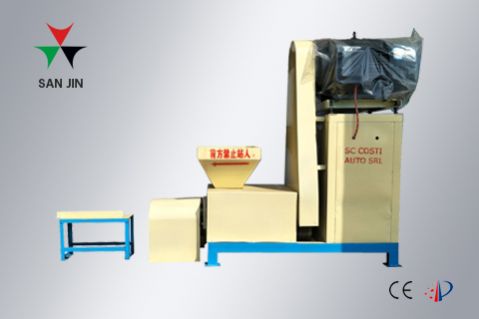

Sawdust Briquette Machine
Introduction
Our biomass briquette making machine are awarded 2 patents ( patent number: 200530100650.5, 200520031212.2),and show the featurs of big capacity, low energy consumption, compact and durable. Many performance data such as capacity, coal bar density, eletricity consumption and wearable degree have reached advanced level.
Using the intrinsic attributes of the biomass material, by spiral extruding at high temperature, under high pressure, biomass material becomes plastic and makes the fine fiber combine, and then stick solid fuel is formed
Finished Carbon
Use and Features
- 01
This machine is the main equipment to make stick solid fuel with such wood material as bits of wood, rice shell,coffee husk,peanuts shell, bagasse,etc. The raw material(12% Water proportion) dried by the dryer(12% humidity)will be formed into fuel under high pressure and at high temperature.
- 02
This machine adopts temperature adjusting indicator, it can work steadily at the fixed temperature and has the feature of rational structure, being easy to operate and maintain. The solid fuel produced by this machine has the feature of being easy to light, and having high calorific value (over 20% higher than normal wood), little pollution when burning and high density which is favorable to transportation. This machine can make full use of the remainder of farm and forest.
Advantage
- No binder is needed during processing ,and so no pollution when it burns.
- Long service life both for the briquette machine and spare parts.
- CE, ISO, certification
- Various shapes and diameter for your selection of rice straw sawdust charcoal machine
- The fianl stick easy to burn,high heating value anf long burning time
- Wood sticks is easy for carrying and packaging .We have also design trolleys to help load the sticks.
- The wood charcoal briquette making machine can be linked to the drier to form an automatic line .This is from our design with patent rights. It can save labour cost.
Technical Parameter
| Production name /Type Briquette machine | Extruding way | Heating way | Briquette shape With hole | 50cm/stick | Raw material | Motor power |
| ZBJ-50 |
Screw extrusion |
Heating with electricity heating ring |
Square hexagon Nine edge | 3-3.5cm/stick | Coconut shell power,sawdust,rice husk,corncob,furfural residue,The fungus pack waste.etc | 15KW 18.5KW 22KW 30KW |
| ZBJ-50 High capacity | 5-7cm/stick | |||||
| 80 type | hexagon | 4-5cm/stick |
Cautions
- Before starting the machine, turn the belt pulley manually to see if it is blocked.
- Before starting the machine, tighten the bind bolts on the heating tube,esp ,the three withstanding screws.
- Before stopping the machine after continuous work, empty the hopper first, and run it reversely for one minute, then the machine can be stopped.
- When work begin again, the machine can‘t be started before the temperature of heating tube rises to 350β;charge a little first, after stick is produced, you can charge at large quantity.
- When working, pay attention to the voltage and the electricity current to see if they are normal to avoid motor damage.
- When the propeller can’t rotate, stop the machine at once, run it reversely, clear the material in the hopper, and raise temperature again. After the temperature is 20β higher, start the machine again and follow the above proper steps.
- The product outlet should be pointed to a wall and a plank should be put in front of it against wall.
- When you begin to work, no person should stand in front of the outlet.
- Electric circuit should be kept dry and clean, after stopping the machine, power must be turned off.
- Stone and iron chips are strictly forbidden to get into hopper. As soon as any abnormal phenomenon appears stop the machine at once.
- All lubricating parts must be oiled every two months.
- It is forbidden to start the machine without the machine being well grounded.
Package
The normal package is wooden box. If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
