Sawdust briquette charcoal machinery

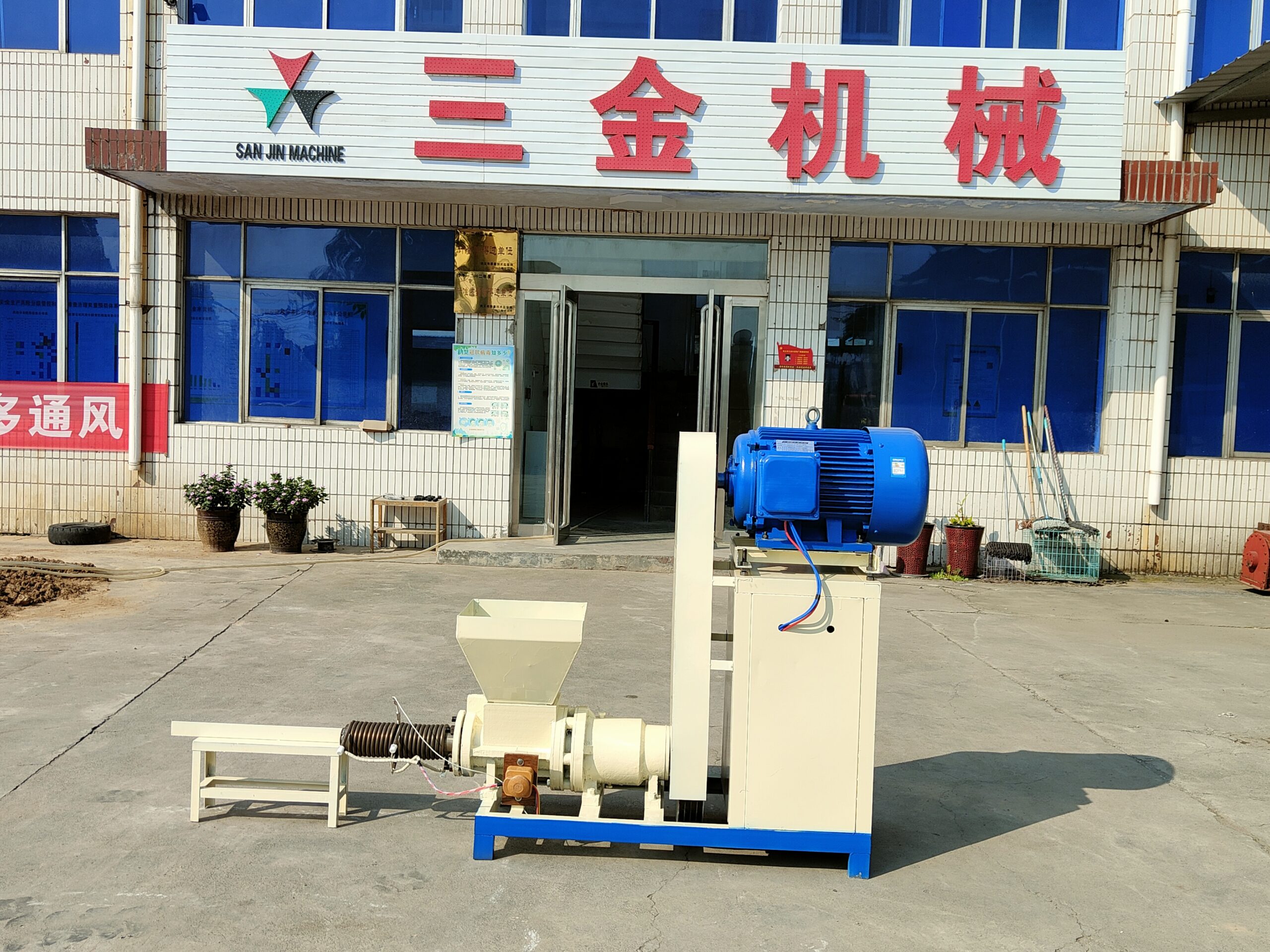

This Sawdust Briquette Screw Extruder Machine designed with automatic temperature control system, it can produce high density wood briquette from biomass, tree, bamboo, etc. The extruded briquette can be used as fuel for BBQ, domestic boiler, or industrial boiler.

Screw propeller for biomass briquette machine
Final product:biomass briquette

Briquette extruder machine from Olive waste
Using the advanced Hot air drying system with the perfect performance.

Sawdust briquette charcoal machinery
What is capacity of your machine ?
One inner pot can load 2.5tons machine-made briquettes; 8hours will get one ton machine-made charcoal.
One Inner pot can load 2tons natural wood, 8-10hours will get 600kg-800kg natural charcoal.
Therefore, one furnace can get: 3tons machine-made charcoal, 1.8-2.5tons natural wood charcoal.

The product of small wheat straw sawdust charcoal briquette machine has the characteristics of reasonable design, reliable manufacturing quality, simple structure, convenient operation, small volume, less floor space, labor and power saving.

Mechanical small biomass charcoal bagasse briquette press machine

Factory Sale Wood Biomass Waste Sawdust Briquette Charcoal Making Machine
Applicable Industries: Hotels,Manufacturing Plant,Home Use, Energy & Mining
Warranty of core components: 1 Year
Core Components: PLC, Engine, Bearing, Gearbox, Motor, Pressure vessel, Gear, Pump
Application: Produce fuel briquettes
Production Capacity: 98%, 300kg-5000kg/h
Voltage: Customization, 220V (voltage can be customized)
Weight: 700 KG
Raw material: Sugarcane, firewood, sawdust, rice husk
Spare parts: Screw propeller, heating ring
Function: Make Stick Shape Briquette
Briquette shape: Square, cube,hexagonal,cylinder

small coal biomass wood press briquette machine
All these materials above can be used to make fuel briquettes (fireplace fuel, boiler fuel, biomass fuel, etc).

350 kg per hour capacity wood log biomass sawdust briquette making machine
Diameter of briquettes:50~80mm Customized
Moisture of raw material:8%-12%
Feeding size:3-5 Mm
Capacity:260-400kg/h
Briquette Shape:Rod
warranty:1 year

Factory price straw Cotton stalk briquette press machine
Biomass charcoal briquette machine can compress rice husk,coconut shell,peanut shell, sawdust, straw,grass,and other agricultural waste mechanically into rods,blocks and particles to improve ten times fuel value per unit volume.

vulnerable part for sawdust briquette making machine
These are screw propeller, heating ring and forming

coconut hull waste charcoal making machine
briquette machine is the process of making waste materials into solid fuel. The objects are used for burning purposes.

The wood charcoal briquette making machine can be linked to the drier to form an automatic line .This is from our design with patent rights. It can save labour cost.

Biomass Coconut Wood Dust Charcoal Briquette Making Press Machine
Warranty of core components: 1 Year
Core Components: bearing
Condition: New
Voltage: 380v
Weight: 620 KG
Dimension(L*W*H): 1800*700*1500 mm
Product name: Sawdust Charcoal Briquettes Machine
Application: Home Heating, BBQ
Capacity: 200-250kg/h
Certification: CE ISO

Square shape sawdust briquette machine
Briquettes are made by grinding Biomass and sawdust into a homogeneous pulp and forming this into a briquette under very high pressure.

Diesel Wood Screw Briquette Machine for India
The heating section of this sawdust briquette making machine is designed with two heat collars made from thick copper wires and the inside is ceramic.

The raw material of the mechanism charcoal is made from the viscosity of wood fiber, and the raw material is heated to a certain temperature. The wood fiber is softened, and then it is cemented into shape, and then the finished product is customer needed.

Piston Type wood sawdust machine / biomass briquette machine
The briquetting press machine is a project that turns agricultural and forestry wastes into biomass briquettes. The best home screw mini briquetting press machine is composed of different steps of equipments, such as wood chipper, crusher/hammer mill, dryer, small briquette machine, cooler, packager and the conveyor connecting each step. If necessary, it needs carbonization device like carbonization furnace to carbonize the wood briquettes into charcoal.

It uses a screw propeller to compress and extrude the biomass into briquettes. Under high pressure and temperature, the natural lignin inside biomass material will be released and act as binder to combine particles to briquette with high density.

New Design 350kg/H Biomass Wood Sawdust Charcoal Briquette Making Machine
Production Capacity:300kg-5000kg/h, 300kg-5000kg/h
Place of Origin:China
Voltage:220V (voltage can be customized)
Dimension(L*W*H):3200*920*2100mm, 3200*920*2100mm
Weight:3000 KG

Wood branches briquette making machine plant
The material size must be less 20mm.If material too big,we will recommend you crusher according to your requirement.Besides the moisture of material should be 10-20%.Too wet or too dry will cause bad forming effect.

High efficiency coffee husk briquette making machine
Main Features: The top part of the screw propeller is treated with a wear-resistant electrode to extend the service life of the parts and ensure the quality of the finished product.
Dies of different shapes and diameters are available for selection. The length of the finished product can be adjusted according to customer requirements.

Carbonization furnace machine from bamboo
Outer stove includes heating room (for heating the stove), furnace body and heat-keeping layer (it is made of the heat insulating material, used for keep the heating)

Biomass Briquette Production Press Charcoal Briquette Extruder
The final briquettes produced by this wood log briquette machine have a carbonized layer on the surface, but they are not completely carbonized. If you are planning to make charcoal briquettes, carbonization equipment is needed

Screw Type Briquette Machine For Boiler BBQ
1. Final shape:hexagon, pentagon, square, round
2. Final length: 20-40 cm adjustable, according to per your needing
3. Final size: Dia. 50mm, 60mm,70mm,80mm

Coffee husk briquetting machine sawdust briquette screw extruder
Applicable Industries: Manufacturing Plant, Energy & Mining
Condition: New, New
Place of Origin: Henan, China
Voltage: 380v/415v or customized
Weight: 650kg
Dimension(L*W*H): 1.7*0.66*1.5m
Certification: CE ISO
Warranty: 1 Year
Suitable material:
bagasse, sawdust, rice husk, peanut shell, etc
Motor: 15-22kw
Briquette Shape: hexagonal, cylinder, or customized
Capacity: 200-350kg/h

Diesel Wood chips biomass briquette machine
Biomass wastes, such as sawdust,rice husks,coffee husks,rice straw, wheat straw,etc.
Material required: Moisture 8%-12%,size3-5mm
If moisture>12% may need dryer,We have air flow dryer and drum dryer.
If material size >5mm will need hammer mill or wood crusher.

Briquette Press Machine Machine Plant Line
Briquette maker can be used in producing high quality wood charcoal stick with sawdust, wood chips, branches, crop stalks, sugarcane residue, coffee husk, paddy straw, sunflower stalk, cotton stalks, bamboo dust, palm husk, soybeans husk, tea waste, etc.

Sawdust Briquette Charcoal Machine From China
Briquettes are made by grinding Biomass and sawdust into a homogeneous pulp and forming this into a briquette under very high pressure. High pressure & pressing releases one of the natural components of wood – lignin which has the property of becoming liquid at high pressure (temperature) and, as it subsequently cools, it binds the wood together in its new form Briquettes.

How to make charcoal from wood log
briquette machine can be 15kw/18.5-3phase-380v-50hz or customer made .
