Heat Pump Charcoal Briquette Dryer Machine
3. Ultra-thick insulation layer, no heat loss, more energy saving.
4. The ball layer is well-proportioned, and the drying is faster.
5. It can be implemented according to the location, length, width and height can be adjusted to save space.
6. Humanized design, healthier operation and maintenance

Design Cassava Drying Machine
1. Low temperature and large air volume, uniform heating and sufficient drying.
2. Water-cooled fan, stainless steel fan blade, durable.

charcoal briquette drying machine vegetable mesh belt dryer

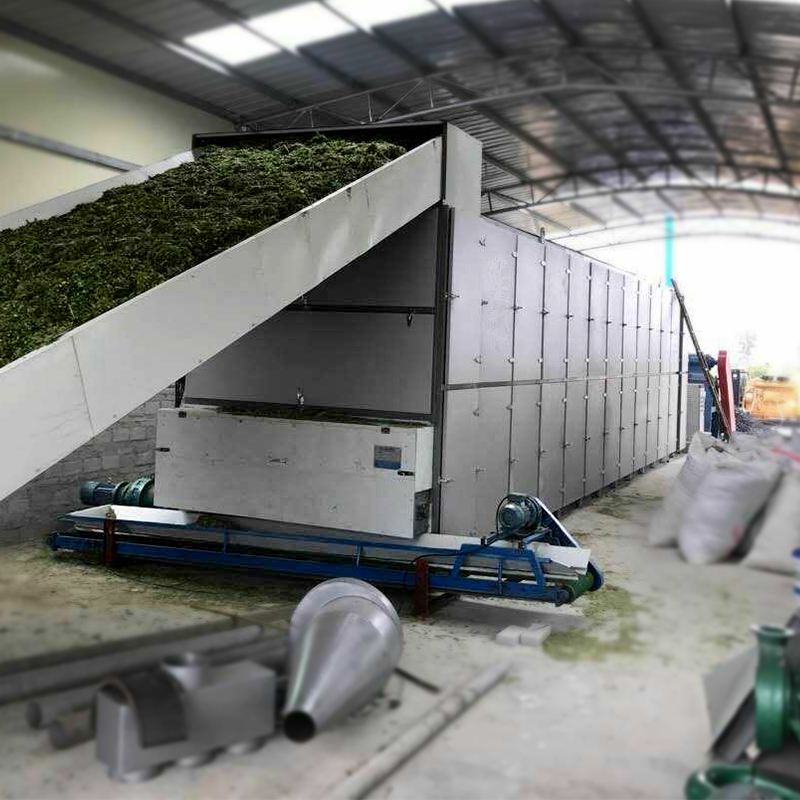

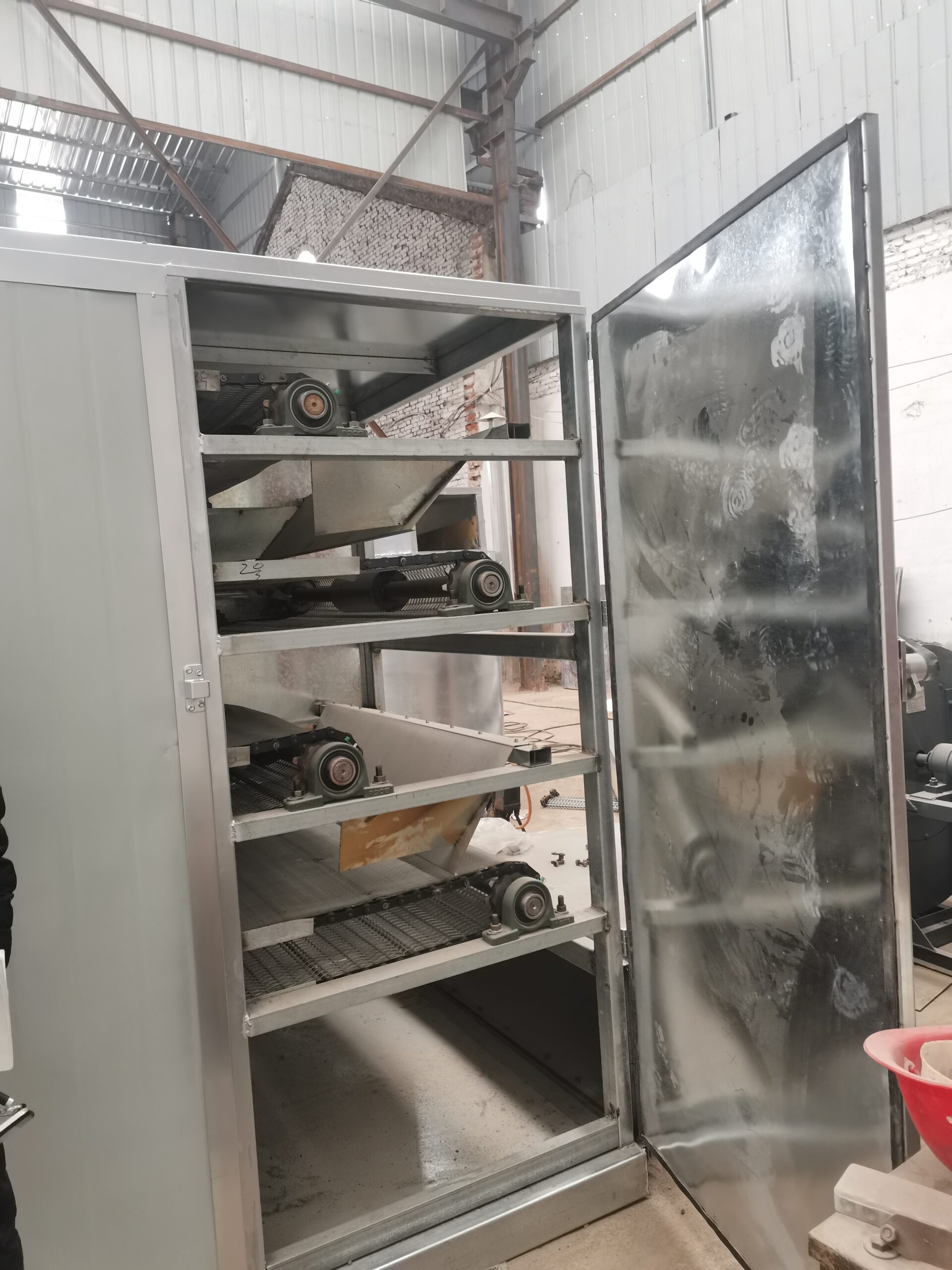

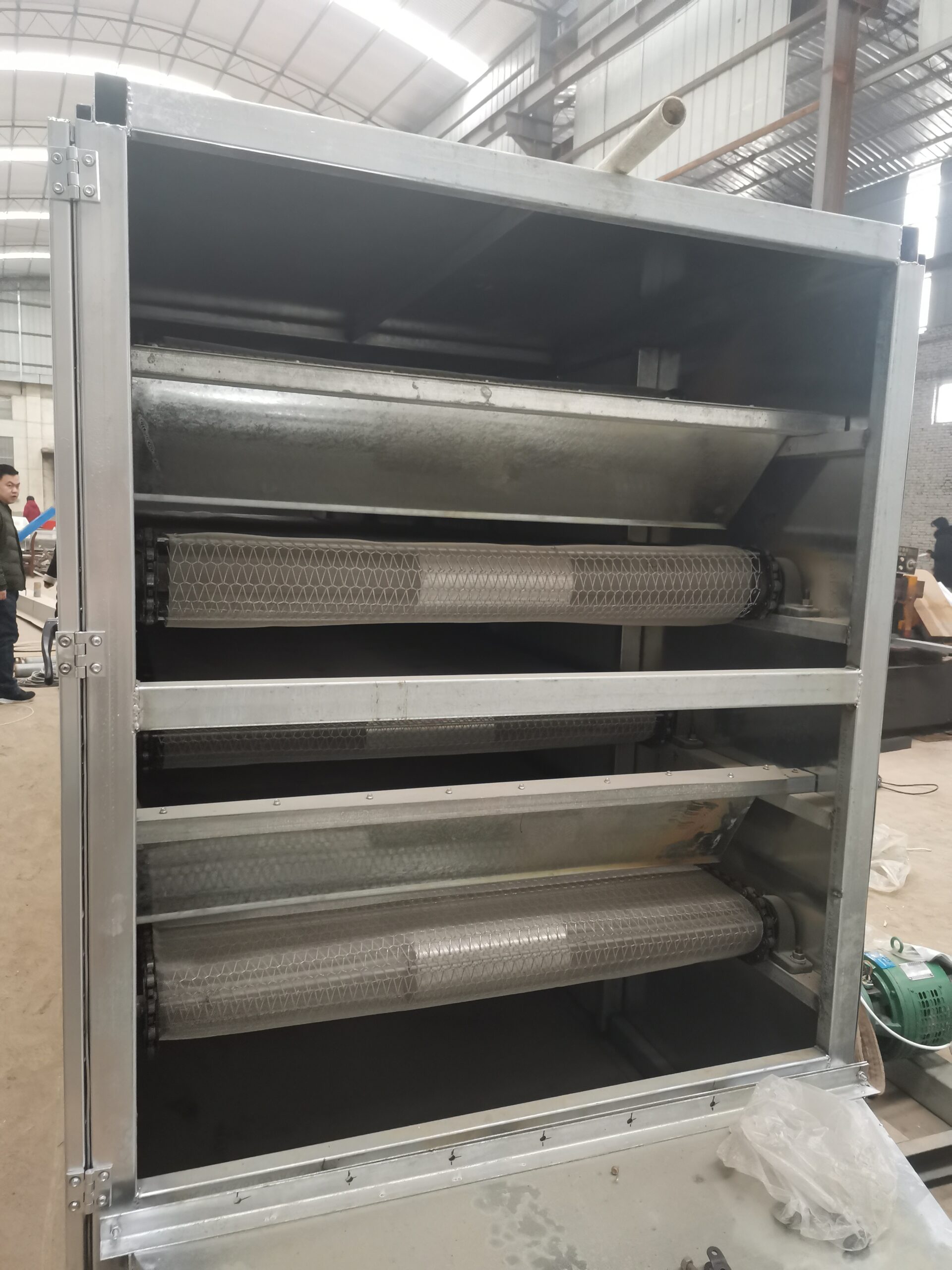

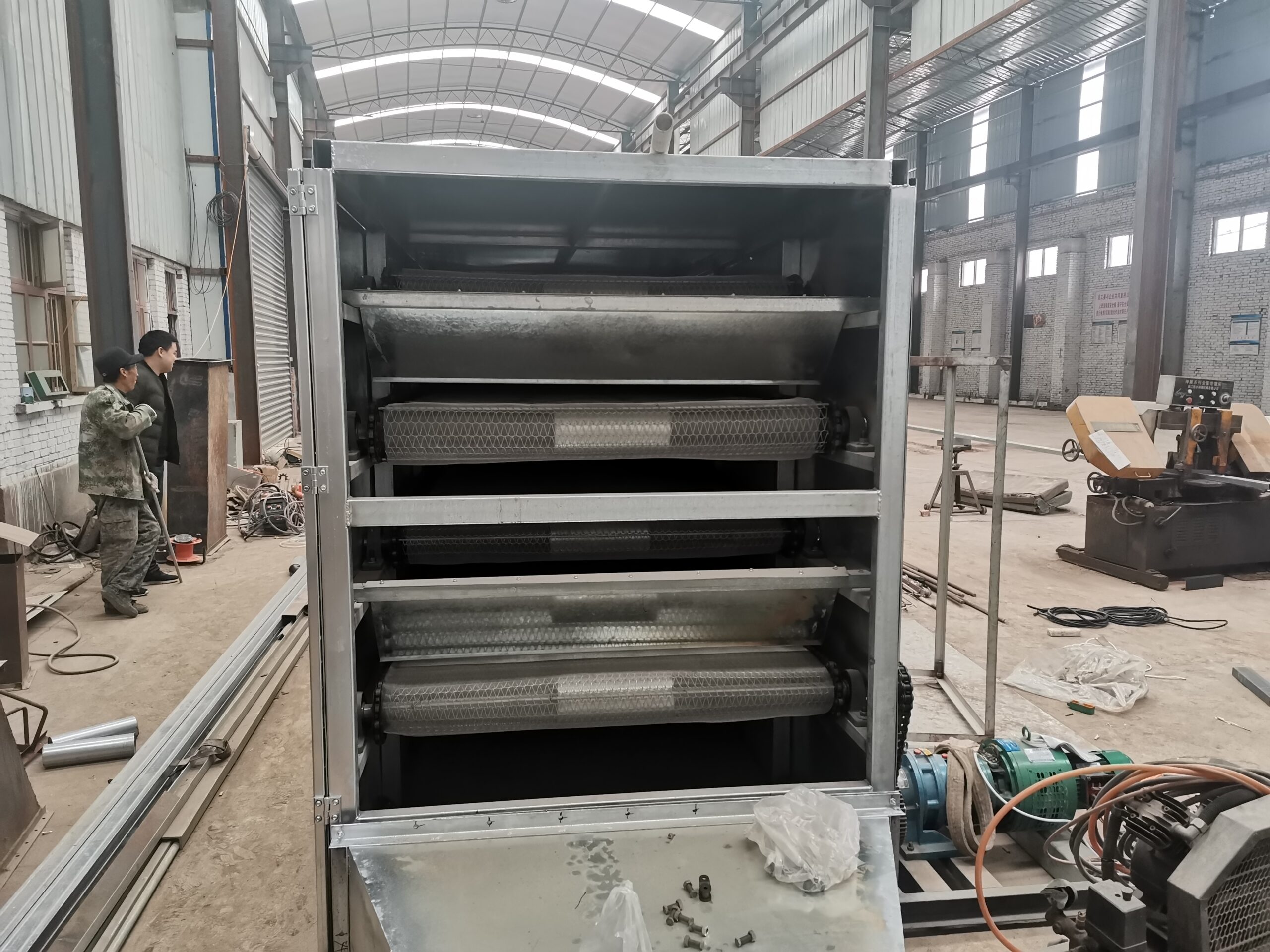

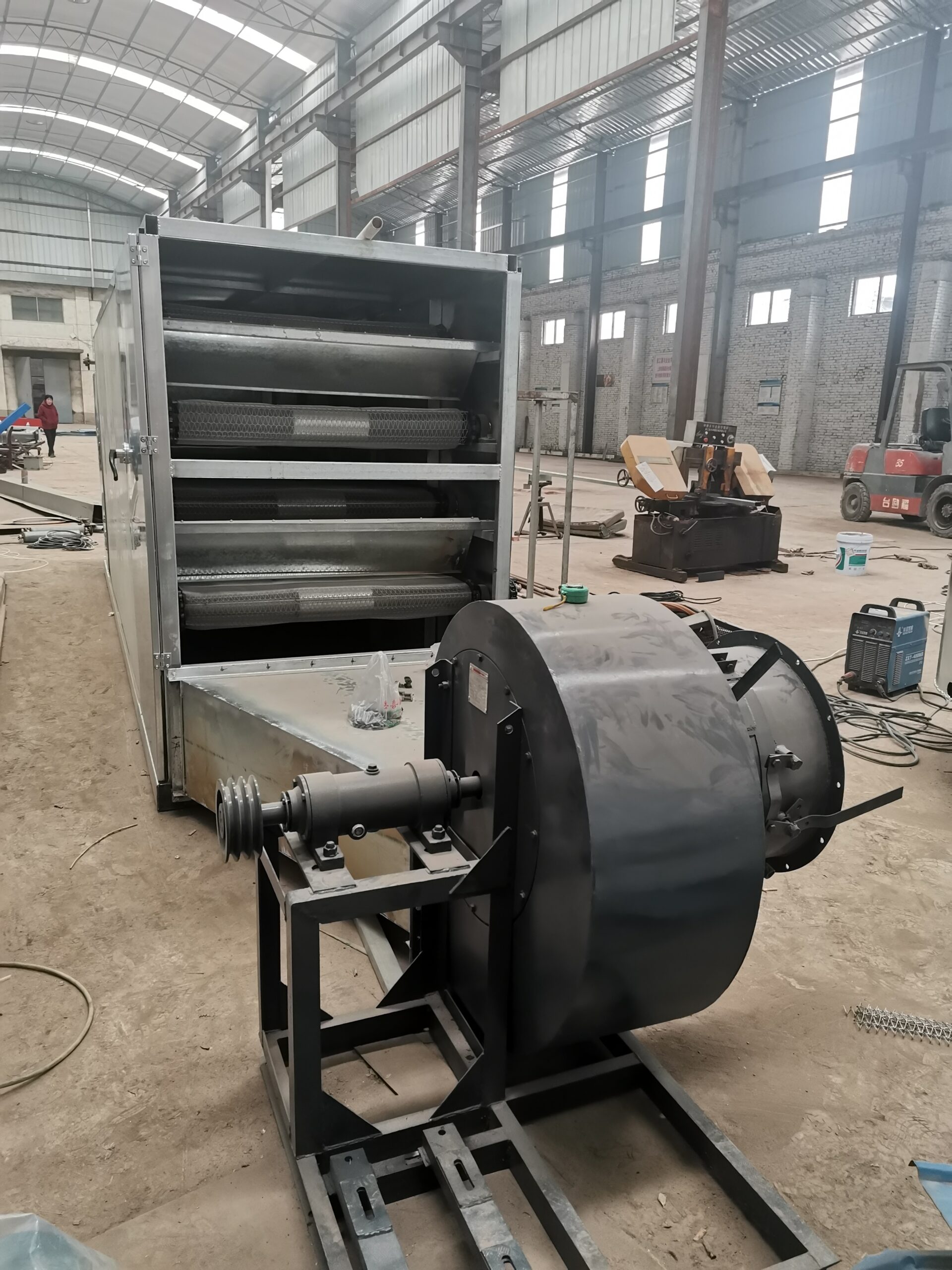

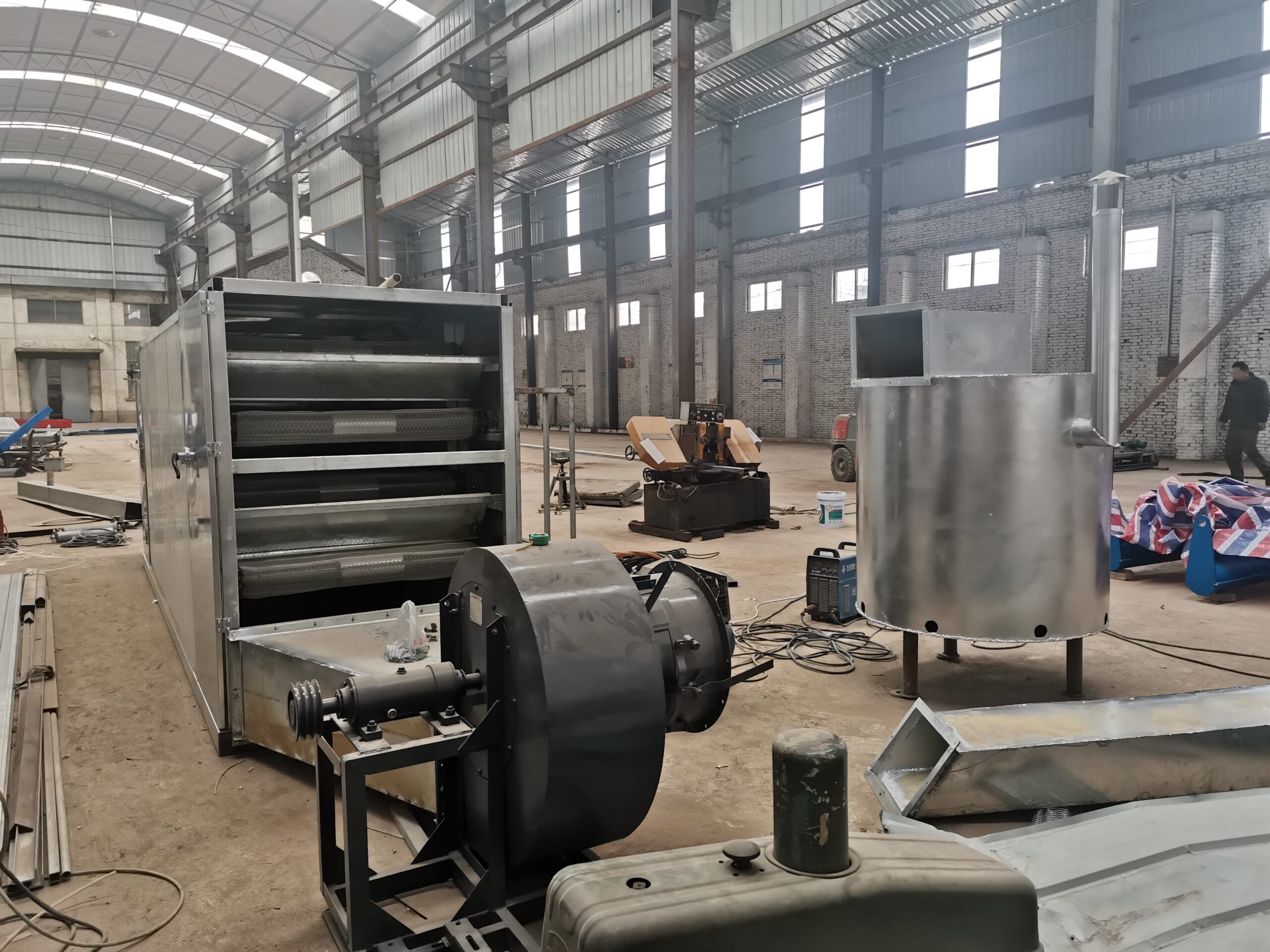

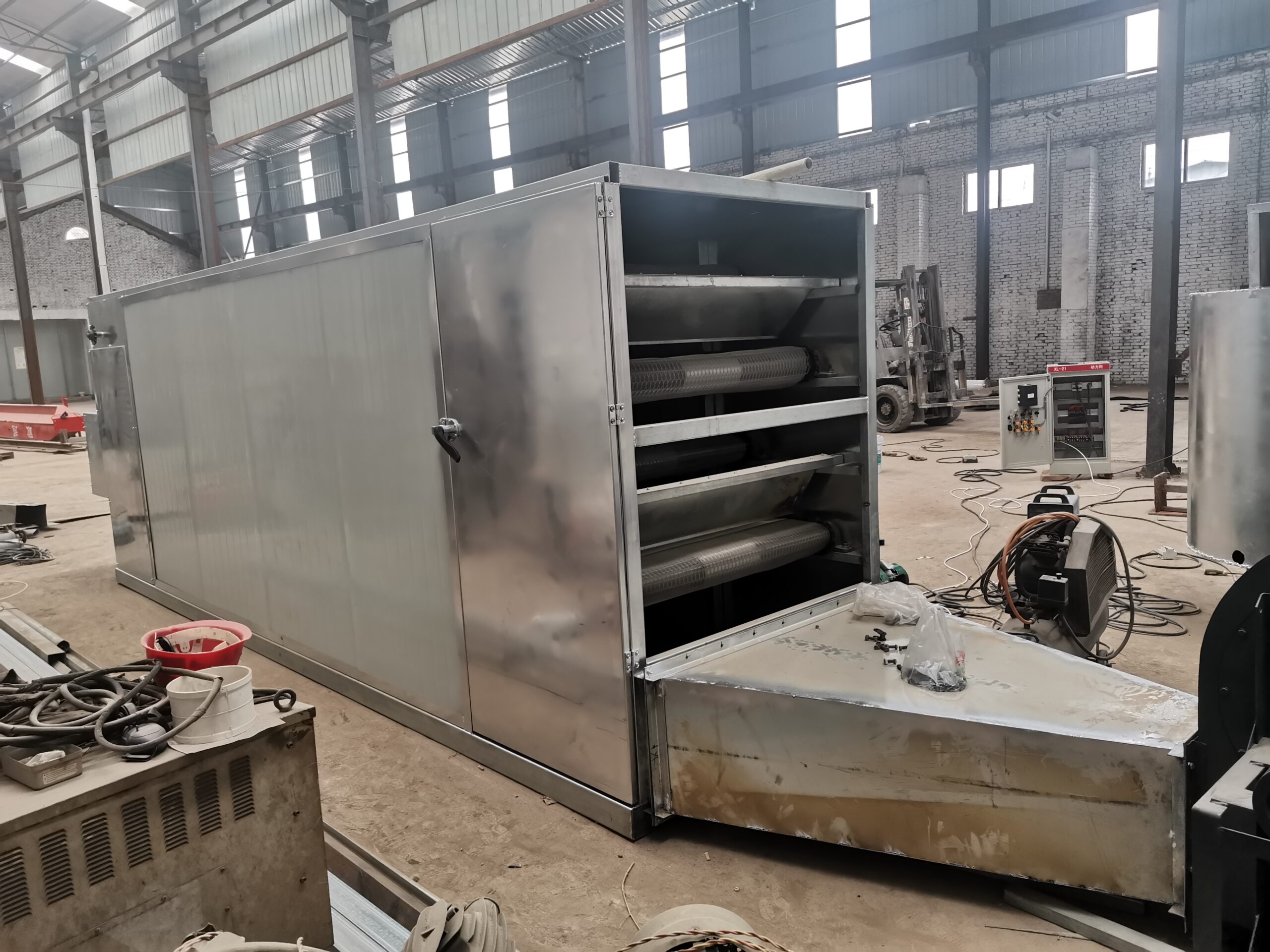

The main principle of the mesh belt dryer is to spread the material evenly on the mesh belt, and it is driven by the transmission device to move back and forth in the dryer. The hot air flows through the materials, and the water vapor is discharged from the moisture exhaust hole. So as to achieve the purpose of drying. The mesh belt adopts 12-60 mesh steel mesh belt. The length of the box body is composed of standard sections. In order to save space, the dryer can be made into a multi-layer type. Common ones are two-chamber three-layer, two-chamber five-layer, and a length of 6 -40m, effective width 0.6-3.0m

macadamia nuts drying equipment
This machine is a continuous-flow drying equipment used for drying flake, strip, and granular materials with good air permeability. It is especially suitable for materials with high moisture content and high temperature, such as dehydrated vegetables and Chinese herbal medicine pieces. ; This series of dryers have the advantages of fast drying speed, high evaporation strength, and good product quality. For dewatered filter cake-like paste materials, they can be dried after being granulated or made into rods.

Hookah briquettes automatic dryer machine charcoal briquettes box dryer
Chain plate dryer is a drying equipment which utilize steel material mesh as a transmission belt, carrying materials for continuous drying, which can be continuous production, which production large capacity, is the most appropriate and suitable for producing more than 20 tons per hour briquettes assembly production line, due to the transfer belt is net, it is also used for drying various regular or irregular lumps. This chain plate dryer work with briquette press machine, coal briquette extruder machine as a whole production line , chain plate dryer also can be used as drying equipment separately.

mesh belt dryer for charcoal briquette, sunflower seeds and apple slice
mesh belt dryer also used a sub-wind device spark machine, this device makes hot air distribution more uniform,to ensure the consistency of the quality of processed products.

Charcoal briquette cassava cacao dryer machine
mesh belt dryer basically rely on the use of air recycling, to achieve drying effect, greatly saving energy.

sawdust dryer clay drying machine wood chip dryer
mesh belt dryer equipment configuration is very flexible, the use of two systems First, a network with a flushing system, the second is the material cooling system.

automatic box briquette dryer Mesh Belt Dryer Conveyor Drying Machine
mesh belt dryer process is simple and flexible, this mesh belt dryer can be based on the actual situation of the object to adjust the corresponding data.

Charcoal Coal Briquettes Continous Conveyor Mesh Belt Chain Plate Dryer
mesh belt dryer working process conveyor belt with a flexible, it can adjust the amount of air, material retention time,Heating temperature, etc., in order to achieve rapid heating and drying effect.

mesh belt drying machine for charcoal briquettes wood chips
It is widely used and has a unique advantage for the chemical industry, food industry, medicine, building materials, electronics and so on.

Industrial continuous mesh belt drying machine
De-watering vegetable, particle feed, gourmet powder, shredded coconut stuffing, organic pigments, compound rubber, acral fibre,medicine product, medicine material, small wooden product, plastic product, aging and solidification for the electronic component and device.

Potato Chips Stainless Steel Continous Dehydrator
For each unit, the hot air is circulated separately. Some exhausted gas is discharged with a special moisture elimination blower. The waste gas is controlled through an adjustment valve. The hot air passes through the mesh-belt covered with the material from the top to the
bottom or from the bottom to the top and this will complete the heat and mass transfer process. This process will bring the material water away. .

Continuous Dryer Onion/Ginger/Mushroom Mesh Belt Drying Machine

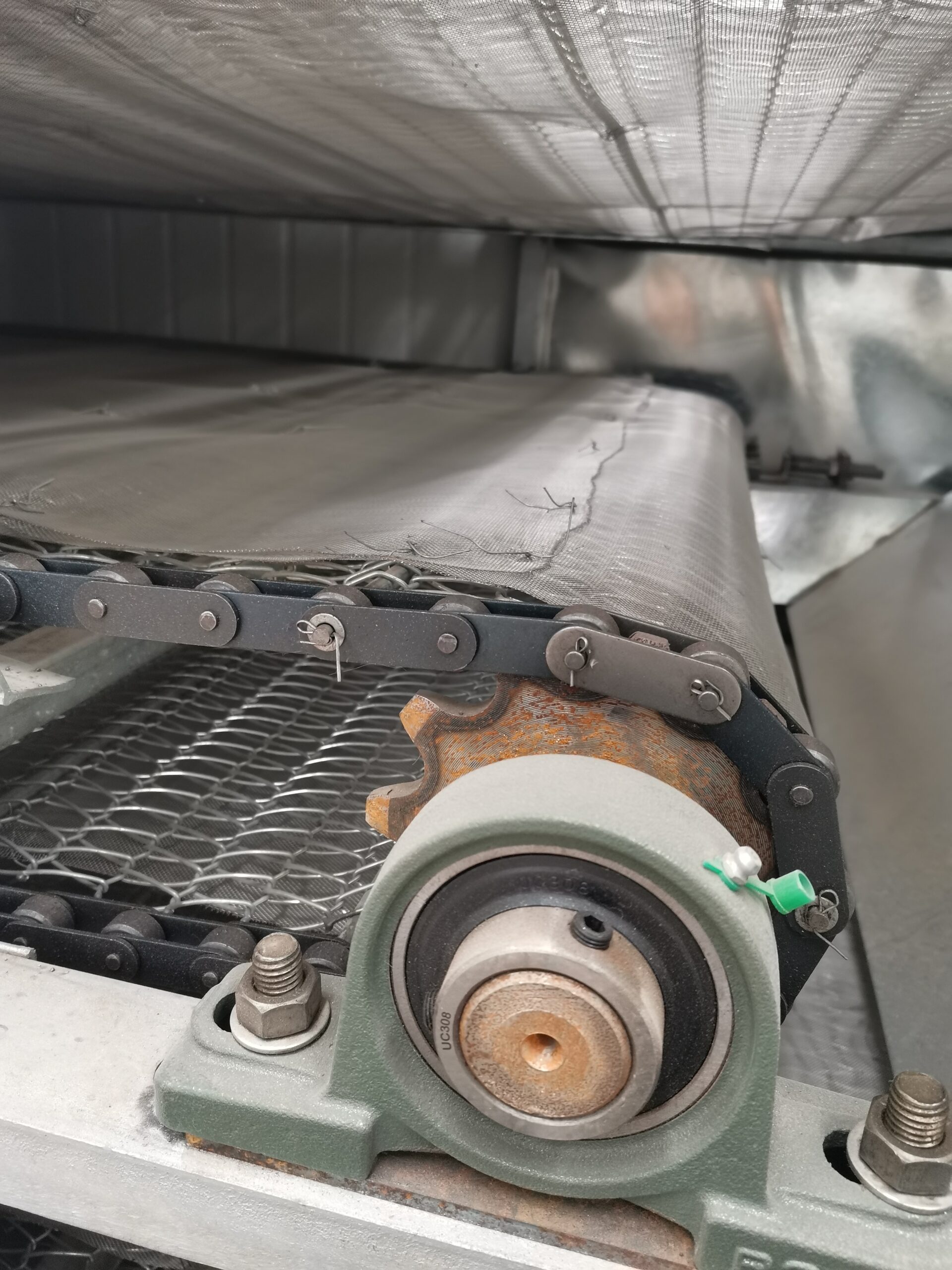

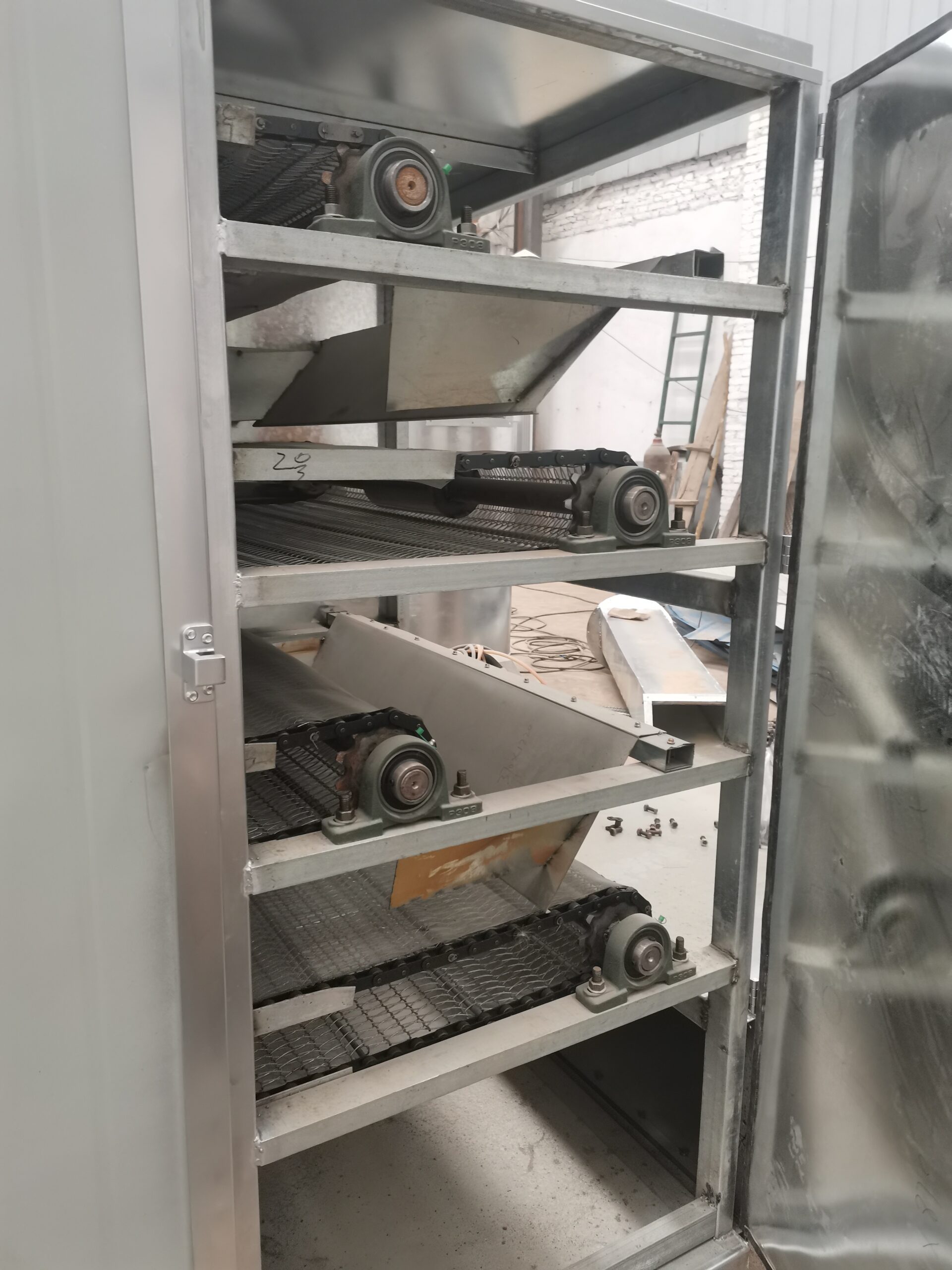

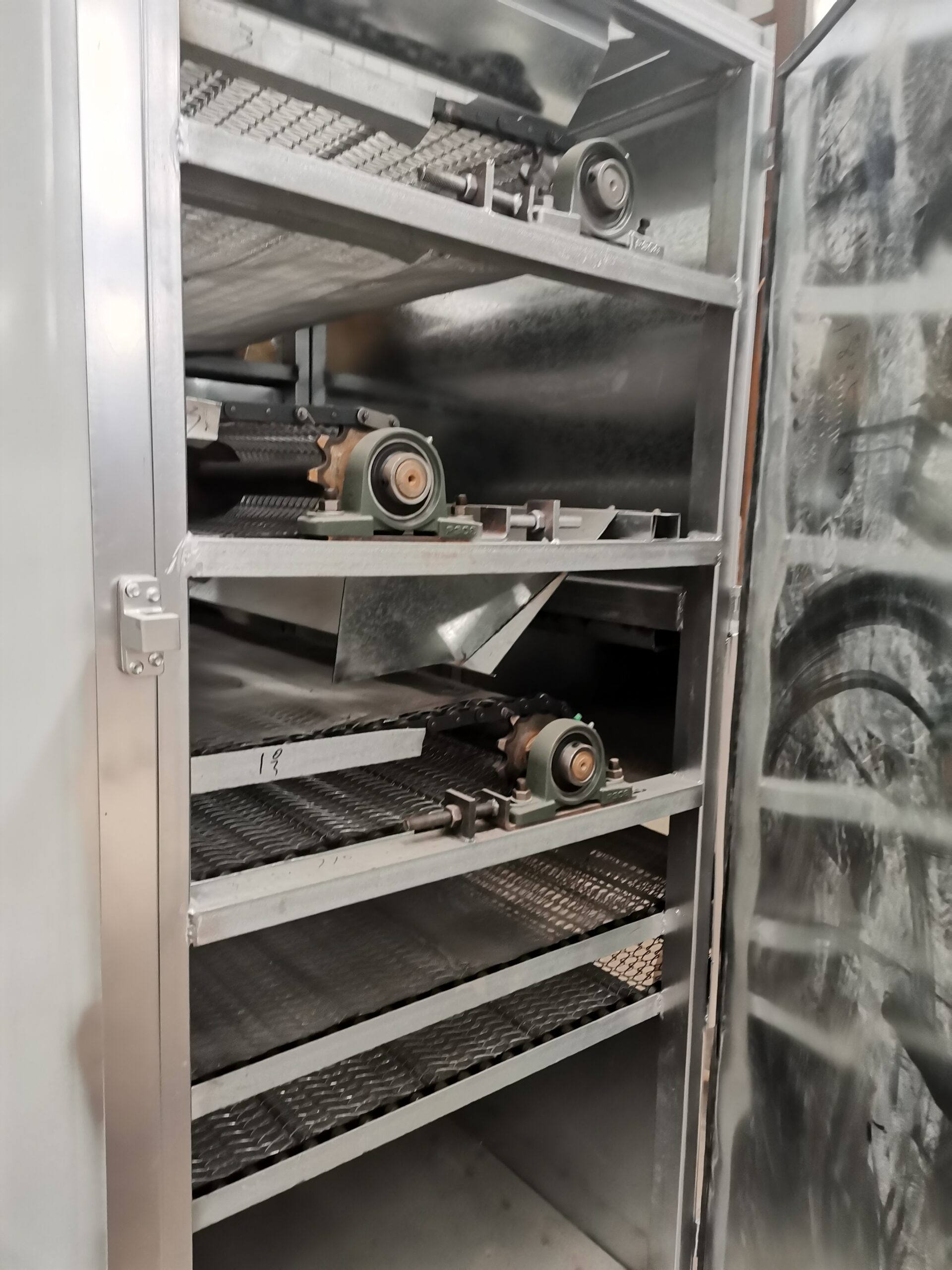

The materials are uniformly put on the mesh-belt by the feeder. The mesh-belt uses generally 12-60 mesh stainless steel wire net and it is drawn and moved inside the drier by a transmission device. The drier is composed of several units.

continuous charcoal belt dryer for balls briquette machine
Here are different dimensions briquett mesh belt dryers manufacturered in my factory, they are 1.2*10m; 1.2*16m; 1.2*20m; 1.5*10m; 1.5*16m; 1.5* 20m; 1.8*10m; 1.8*16m; 1.8*20m; etc. Machines’ dimension can be disigned according to customers’ material information and moisture content.
