Charcoal Carbonizer Furnace Oven

Horizontal style carbonization furnace adopts hot airflow carbonizing techonlogy, dramatically increased carbonization rate frome 85-99%. Furthermore, the process evenly carbonizing the material, which contribute to the top quality production. It is easy and safe to operate, as well as it has a low energy cost.

Bamboo Fresh Wood Log Charcoal Carbonization Furnace
Charcoal carbonizing furnace is a kind of new air flow type carbonization stove, can also be called as charcoal carbonization stove. It is used to make charcoal from wood and all kinds of biomass. It adopts new advanced hot air carbonizing technology, greatly improves the carbonization rate to 99%, compared with the carbonization rate 80% of traditional carbonization stove! Its charcoal making time is short .This kind stove is safe and easy to operate,the charcoal made from the carbonizing furnace can be the material of activated carbon. thus it is very famous among many industries like charcoal making industry and boiler industry!

The advantage of the Wood coconut shell charcoal making machine
1. Due to its design principle of horizontal type, reduce its carbonization time.
2. It can use different material as the fuel. Like waste wood, charcoal, natural gas, liquefied gas or coal gas.
3. Saving energy, it can reuse the smoke produced during the process of carbonization.
4. Continuous carbonization, it can produce 2-3 furnaces per day.

Wood logs charcoal briquette press machine
Carbonization furnace for biomass charcoal can greatly increased carbonizing ratio (increased from about 88% to 99%) and shortened the carbonizing time (from 24 hours to 6 hours), and shows the features of easy operation, higher safety, high efficiency, and energy saving. This furnace is ideal equipment for wood briquettes to have anoxic distillation carbonization.

coconut shell huck makig charcoal for shisha
Briquette machine screw propeller push the material into forming tube.

The carbonization stove is a new designed machine for chargin the wood briquette, bamboo, wood log, coconut shell and so on into charcoal. It is selling well for its easy operating, high capacity, good quality. Once carbonization need 8 hours, smokeless and the raw materials can be wood log or other flammable goods.

Coffee waste charcoal press machine
Briquetting is a process during which raw materials are compressed under high pressure and high temperature. After the processing of drying and pressing, the briquette is characterized by high density, small in size, better combustion, capable as the substitute for the superior coal or firewood.

High Temperature Wood Carbonization Furnace.Then apply it in life .Raw materials can be all kinds of Biomass wastes (such as wood branches, wood, coconut shells, plants,straw,bamboo etc.).

wood carbonizer stove
How to make charcoal from sawdust?
1. Wood crusher: A crusher will help you to reduce the size of your raw material to less than 5 mm.
2. Dryer: For small capacity drying, you can choose the air flow dryer with small investment. If your capacity is bigger, a rotary dryer will be a better choice.
3. Wood briquette machine: Press raw material into wood briquettes.
4. Charcoal furnace: After carbonization, wood sawdust briquettes become smokeless charcoal.
5. Other accessories: Conveyor, material distributor, etc.

Carbonization furnace machine from bamboo
Outer stove includes heating room (for heating the stove), furnace body and heat-keeping layer (it is made of the heat insulating material, used for keep the heating)

charcoal carbonization furnace charcoal making machine
Raw material of carbonization furnace
lignin-containing material: Wood, Bamboo, Coffee husk, Rice straw, Coconut shell, Rice husk, Palm shell, Nuts shell ect.

Environmental protection .because the stick in the carbonization process will produce a lot of light yellow combustible gas.These gases through the carbonization furnace with there own pipes can make combustible gas diversion to the charring furnace combustion zone to the second fire heating. More environmentally friendly and saving fuel.

About Bamboo Horizontal Airflow Charcoal Carbonizer Furnace Oven, the raw material is verious: wood, wood branch, sawdust, coconut shell, rice husk, wood jute sticks coconut shell hookah bamboo sawdust, etc. Recycled wood tar, wood vinegar liquid. One ton charcoal can get 50kg of wood tar and wood vinegar liquid. Energy saving and environmental protection.

How to make coffee husk charcoal machine
Wood Sawdust Briquetting Production Line :
Raw Material → Crusher → Dryer → Briquette machine→Carbonization Furnace.

coconut shell charcoal making machine
This bio-fuel briquette is 40-90mm in diameter,occurs in the hollow quadrangular or hexagonal cylinder or hollow hexagonal with a 15-20mm hole through the body.The bio-fuel carbon maintains the cleanliness and hygiene,and is suitable for family heating and barbecuing.

Coconut shell charcoal carbonization kiln
It adopts the advanced carbonized technology heat flow,carbonized rate increased significantly

The smokeless charcoal stove is special used for wood log, jute stick and other long rod-type biomass characteristics, adopts horizontal structure, cart entry and exit raw material and the advanced hot gas dry carbonization process technology, using a unique carbonization flue gas (volatile hydrogen material and tar, etc.)

Charcoal carbonizing furnace is a kind of new air flow type carbonization stove, can also be called as charcoal carbonization stove. It is used to make charcoal from wood and all kinds of biomass. It adopts new advanced hot air carbonizing technology, greatly improves the carbonization rate to 99%, compared with the carbonization rate 80% of traditional carbonization stove!

wood lump charcoal carbonization furnace

Bamboo coconut lump charcoal making machine
The reason is called biochar making machine because the stick in the carbonization process will produce a lot of light yellow combustible gas. These gases through the carbonization furnace with there own pipes can make combustible gas diversion to the charring furnace combustion zone to the second fire heating. More environmentally friendly and saving fuel.

Hot sale horizontal coconut shell charcoal making furnace

How to make charcoal from wood log
briquette machine can be 15kw/18.5-3phase-380v-50hz or customer made .

charcoal making machine/wood carbonizer stove
1. Three layers structure of the furnace body. The inner layer is high heat transfer and wear-resistance steel for increasing the carbonizing temperature. The middle layer is the asbestos for insulation. The outer layer is painted steel.
2. Various heating methods. The heating source can be firewood, coal, natural gas, liquefied gas, burner, electric, etc.

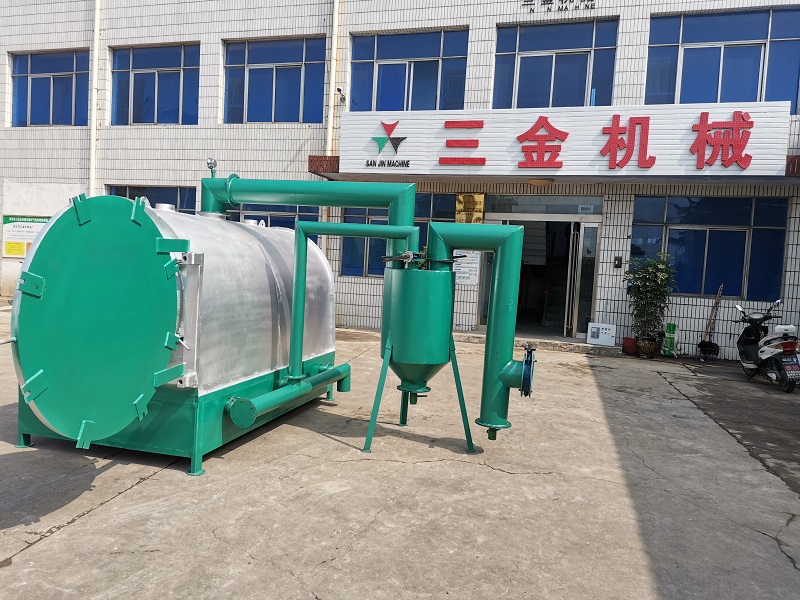

New model horizontal bamboo charcoal carbonizer furnace oven can directly carbonize fruit tree,bamboo,branch,wood blocks,coconut shell,palm shell,furniture factory scrap,etc.The new environmentally friendly carbonization furnace adds gas recovery device on the basis of the original carbonization furnace. After the flue gas is recovered, it can reach dust-free and smoke-free. The recovered flue gas can be ignited like liquefied gas for heating, cooking, and baking and used for dry machine and itself.

The new environmentally friendly horizontal airflow carbonization furnace adds a flue gas recovery device on the basis of the original carbonization furnace. After the flue gas is recovered, it can be dust-free and smoke-free. The recovered flue gas can be ignited like liquefied gas for heating, cooking, and Dryer use.

At present, there are three types of carbonization furnaces, common type (can only be used to produce charcoal, not to collect gas); wood carbonization equipment (used to carbonize branches, wood blocks, coconut shell blocks, scrap pieces in furniture factories, etc.) This equipment can be configured The gas recovered by the gasification furnace device can be turned into fuel gas for the carbonization furnace’s own use or other); the new horizontal environmentally friendly carbonization furnace has the effect of one machine and two purposes, and the materials can also be directly carbonized, or can be carbonized after rods.

In today’s world, many people like to eat barbecue. However, barbecue carbon is definitely used when eating barbecue. Our biocharcoal making machine is used to make smokeless barbecue carbon.

The operation is very convenient, good safety, high production efficiency, can save a lot of energy, good environmental protection performance. Shunt can also dry burning boiler flue gas and so on.

Horizontal Carbonizing Furnace to end charcoal cooling time is shorter.
Horizontal Carbonizing Furnace Supporting a track and kiln car, use more convenient,reduce worker labor intensity.

Bamboo carbonization kiln furnace stove for making wood charcoal
The Bamboo carbonization kiln furnace stove for making wood charcoal can be all kinds of the wood,tree branches, bamboo ,biomass briquettes, the coconut shell etc.
The details information:
Effective Volume:8CBM
Dimension(L*W*H):3.5*2.15*2.5m
Power:0
Certification:CE
Warranty:1 Year
After-sales Service Provided:Field installation, commissioning and training
