300~350 kg/h Screw Type Charcoal Biomass Briquette Making Machine

briquette making machine with raw materials of bamboo, coconut etc
Condition: New
Place of Origin: Henan, China
Brand Name: SANJIN
Voltage: 220/380V
Weight: 800kg
Dimension(L*W*H): 1.7*0.65*1.45m
Warranty: 1 Year
Product name: charcoal extruder machine
Raw material: sawdust
Capacity: 200-500kg/h

Charcoal molding is also known as wood powder molding machine its products can be divided into sawdust pole machine, rice husk pole machine, sawdust pole machine, etc., the equipment is the main molding equipment for the production mechanism of charcoal

The Biomass Extrude Machine is the main molding equipment in sawdust production line. It mainly uses carbonaceous wood materials such as sawdust, sawdust, rice husk, peanut shell and plant straw,etc

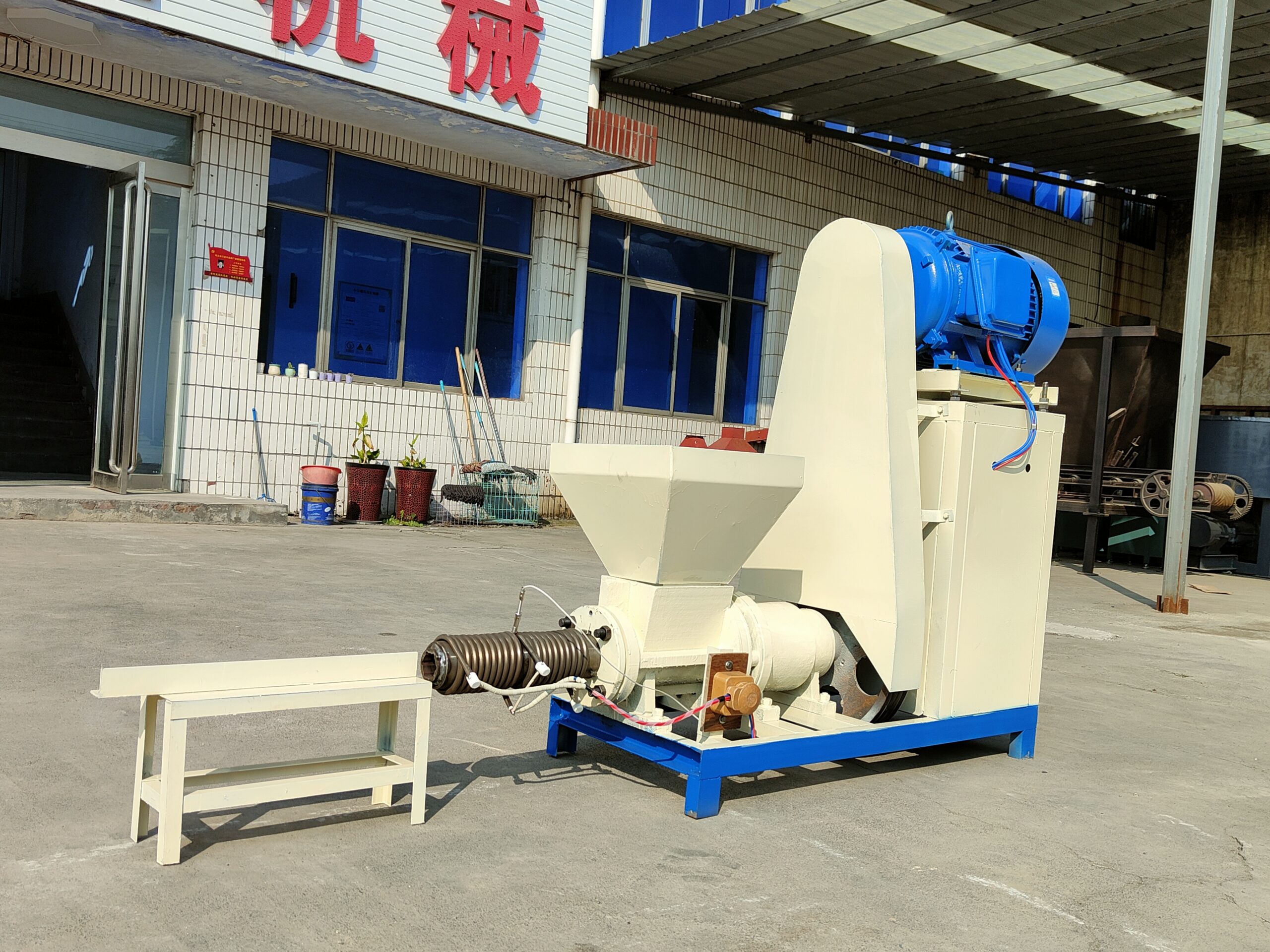

Screw Extruder For Biomass Charcoal Briquette Machine Equipment
This machine adopts temperature adjusting indicator, it can work steadily at the fixed temperature and has the feature of rationalstructure, being easy to operate and maintain.

Sugarcane firewood charcoal briquette press machine
Capacity: 200-350kg/h
Motor: 15-22kw
Voltage: 220V/380/415 (voltage can be customized)
Weight: 550kg
Dimension(L*W*H): 2400*750*1400mm
Certification: ISO CE
Warranty: 12 Months
Color: can be customized
Mositure content: 8%-12%
Raw material: Sugarcane, firewood, sawdust, rice husk
Briquette shape: round,cubic,hexagonal
spare parts: Screw propeller,heating ring

Hexagon shape sawdust briquette making machine
This bio-fuel briquette is 45-80mm in diameter, occurs in the hollow quadrangular or hexagonal cylinder or hollow hexagonal with a 15-20mm inner-hole.

Coal Sawdust Briquette Machine Line
Our sawdust briquette making machines are suitable to make high-quality biomass briquettes from a very wide range of raw materials, but we can’t all listed here. If you are wondering whether your materials are suitable for briquetting press or not, please just contact us to get free test trails.

Olive husk made briquettes for cooking
Any types of Agro-forestry waste and forest waste can be used for make briquettes Such as maize stalks, soybean stalks, broomcorn stalks, cotton stalks, rape stalks, peanut plants, sunflower stalks, bamboo sawdust, bagasse

Olive Husk Briquette Making Machine
Improved forming cylinder structure can reduce the friction between the machine and raw materials, and increase the density of briquettes.

straw wood chips briquette press machine
Final product :
1. The available shape: square, hexagonal, hexagon with edge.
2. The available diameter could be: 50mm, 60mm, 80mm.
3. Length could be: 20cm,30cm, 40cm, 50cm
4. Gravity: 1300—1900kg/m³ Calorific value: 4500-5000kcal/kg.

High Quality Wood Briquetting Machine
Motor Type: AC Motor
Place of Origin: Henan, China
Dimension(L*W*H): 2200*600*1300
Warranty: 2 years
After-sales Service Provided: Online support, Video technical support
Usage: Make Fuel Briquettes
Raw Material: Biomass Material
Moisture of raw material: 8%-12%
Size of raw material: 3-5mm
Capacity: 200-500kg/h
Diameter of briquettes: 50mm
Main parts: forming tube,propeller,hearing rings

Multifunctional charcoal briquette making machine price
Usage: Making coal
Capacity: 140-200kg/h(variable)
Model: depend on capacity
Color: White,green,red,blue
Mold: Cube, round(variable)
Heating Method: Electricity

wood sawdust waste chips briquette charcoal making machine price
The Biomass Extrude Machine is the main molding equipment in sawdust production line. It mainly uses carbonaceous wood materials such as sawdust, sawdust, rice husk, peanut shell and plant straw, and passes through high temperature and high pressure process without any binder, extruded into a solid hollow bar. The raw materials must meet the requirements: moisture 8%-12%, size 3-5mm.

Peanut shell hull charcoal making machinery
It uses a screw propeller to compress and extrude the biomass into briquettes. Under high pressure and temperature, the natural lignin inside biomass material will be released and act as binder to combine particles to briquette with high density.

Coffee husk briquetting machine sawdust briquette screw extruder
Applicable Industries: Manufacturing Plant, Energy & Mining
Condition: New, New
Place of Origin: Henan, China
Voltage: 380v/415v or customized
Weight: 650kg
Dimension(L*W*H): 1.7*0.66*1.5m
Certification: CE ISO
Warranty: 1 Year
Suitable material:
bagasse, sawdust, rice husk, peanut shell, etc
Motor: 15-22kw
Briquette Shape: hexagonal, cylinder, or customized
Capacity: 200-350kg/h

briquettes with a hole in the middle
The available diameter could be: 50mm,55mm.60mm,65mm.70mm.80mm and so on

Coffee waste charcoal press machine
Briquetting is a process during which raw materials are compressed under high pressure and high temperature. After the processing of drying and pressing, the briquette is characterized by high density, small in size, better combustion, capable as the substitute for the superior coal or firewood.

Straw Press Rice Husk Sawdust Biomass Briquette Machine
Raw material:
Biomass wastes, such as sawdust,rice husks,coffee husks,rice straw, wheat straw,etc.
Material required: Moisture 5%-12%,size3-5mm
If moisture>12% may need dryer,We have air flow dryer and drum dryer.
If material size >5mm will need hammer mill or wood crusher.

wood block making machine
It’s easy to run a briquette plant with screw briquetting machine and always with low cost. Normally the briquette line will be with these kinds of machines:

High capacity Cow Dung Sawdust Briquette Machine
Raw material
1) Any type of Agro-Forestry waste can be used. But the Moisture Content Should be Less than 12%, grain size is below 5×5mm.
2) For example: Sawdust ,Coffee Husk ,Paddy, Straw ,Sunflower Stalk, Cotton Stalks ,Tobacco waste ,Mustard Stalk, Jute waste ,Bamboo Dust ,Tea waste ,Wheat Straw ,Palm husk ,Soybeans husk ,Rice Husks Forestry
wastes , Wood Chips and many other Agro wastes.
Moisture: 8-12%,
Size: 3mm ~ 5mm

Cube charcoal briquette from coffee waste

Biochar Coconut Shell Sawdust Charcoal Briquette Making Machine
This machine is used to make sawdust into half-charcoal stick,it is equiped with the auto-controlling heating system. this process can produce denser and stronger biomass briquette under higher pressure and temperature, the charcoal briquette is characterised by high density,small in size,better combustion,as the substitute for superior coal or firewoood,the bio-fuel carbon maintanis the cleanliness and hygiene.and is suitable for family heating and barbecuing.

Wholesale Custom Cheap wood charcoal making machine
1. Crusher: Crush all material until the output size under 3 mm.
2. Dryer: Dry the raw material.
3. Briquette machine: To form the material into our ideal shape.
4. Carbonization Furnace: The Charcoal machine could turn the shaped material into charcoal.

Rice Hull Charcoal briquette Making Machine
The outlet wood briquettes has the features of high density, small volume, which can take place of fuel wood and coal

Biomass Briquette Production Press Charcoal Briquette Extruder
The final briquettes produced by this wood log briquette machine have a carbonized layer on the surface, but they are not completely carbonized. If you are planning to make charcoal briquettes, carbonization equipment is needed

The Biomass Extrude Machine is the main molding equipment in sawdust production line. It mainly uses carbonaceous wood materials such as sawdust, sawdust, rice husk, peanut shell and plant straw, and passes through high temperature and high pressure process without any binder, extruded into a solid hollow bar.

Factory Sale Wood Biomass Waste Sawdust Briquette Charcoal Making Machine
Applicable Industries: Hotels,Manufacturing Plant,Home Use, Energy & Mining
Warranty of core components: 1 Year
Core Components: PLC, Engine, Bearing, Gearbox, Motor, Pressure vessel, Gear, Pump
Application: Produce fuel briquettes
Production Capacity: 98%, 300kg-5000kg/h
Voltage: Customization, 220V (voltage can be customized)
Weight: 700 KG
Raw material: Sugarcane, firewood, sawdust, rice husk
Spare parts: Screw propeller, heating ring
Function: Make Stick Shape Briquette
Briquette shape: Square, cube,hexagonal,cylinder

Hydraulic Sawdust Briquette Press Machine
Finished product from the wood briquette machine:
1. The size: diameter of outlet briquettes can be 50-80mm;
2. The shape: the outlet briquettes of woodbriquette machine can be round, square, hexigonal stick shape;
3. The features: the outlet briquettes are with high density, good appearance, small in size, etc.

Raw material including sawdust, plant straw, rice husk, manure peper, grain husk, coconut shell, cotton rod, wood chip, sawdust, branch, bark, bamboo powder, wood timbering, forest residual and household refuse, etc.

350 kg per hour capacity wood log biomass sawdust briquette making machine
Diameter of briquettes:50~80mm Customized
Moisture of raw material:8%-12%
Feeding size:3-5 Mm
Capacity:260-400kg/h
Briquette Shape:Rod
warranty:1 year
