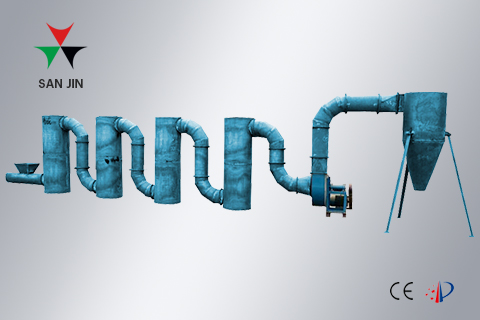

Hot Airflow Type Dryer
Introduction
Hot airflow type dryer is our newly developed and advanced drying equipment which also called pipeline type dryer.This type of dryer adopts twice circulate heating system and shows the features of automatic feeding,complete mix of air and materials,strong drying strength, lower dust and bigger drying capacity.
The Feature
- 01
Large drying machine processing capacity, low fuel consumption, dry low cost.
- 02
Drying machine has the characteristics of high temperature resistant, can use of materials at high speed, high temperature hot air drying.Extensible ability, design considering the production surplus, even a modest yield increase, also need not replace the equipment.
- 03
Equipment structure of self-aligning type tug, tug with roller ring fit well, greatly reduces the wear and power consumption.Specially designed gear wheel structure, greatly reduce the thrust due to the tilt work level.
- 04
Resistance to overload ability, cylinder smooth operation, high reliability.
Technical Parameter
| Model | Power | Capacity | Inlet particle Size | Weight |
| QL-200 | 4kw | 200kg/h |
<5mm |
800kg |
| QL-320 | 7.5kw | 400-600kg/h |
<5mm |
1200kg |
| QL-300 | 7.5kw | 700-800kg/h |
<5mm |
1500kg |
| QL-400 | 18.5kw | 1000-1200kg/h |
<5mm |
1800kg |
Package
The normal package is wooden box. If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
