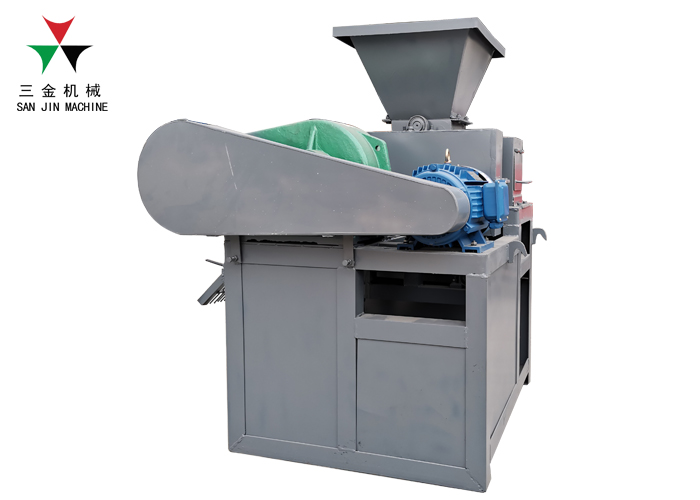

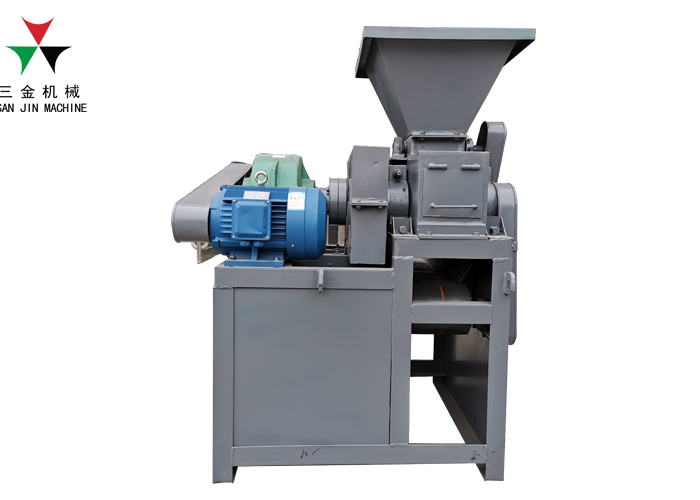

Charcoal briquette press machine

Finished Carbon

•

  Finished Carbon

•

  Finished Carbon

•

  Finished Carbon

•

  Finished Carbon

Equipment performance

• 01

  High capacity,competitive price,Low power consumption

• 02

  Material adaptable:suitable for kinds of biomass material,Straw from powder to between 1-30 mm length, moisture content of 5-18%

• 03

  The machine with double helix feed preload, single head stamping molding, to ensure the stability of the material forming

• 04

  Working principle:crusher-conveying-forming-packing-weight-storage

What is the biomass coal

• Biomass coal means village corn stalks,wheat stalks,cotton stalks, straw,rice husk,corn cob,wood branches,tree leaf,sawdust,peanut shell,forest,after crushing and pressing,density molding.

Biomass coal features

• After molding biomass coal,small volume,big proportion,Resistant to burning,Easy to store and transport.The volume is one-third of the straw, is 10-15 times the weight of the same straw.Density is 1.2kg/cm3. Calorific value between 3500-500 kcal.Is a volatile solid fuel.

Application scope

• Biomass coal,can replace wood, coal, liquefied gas and so on. Used for living stoves, heating stoves, hot water boilers, industrial boilers, biomass power plants and so on.

Market outlook

• “biomass coal” Is a new biomass renewable fuels,Clean environmental protection is lower than coal prices，wide range of applications,the city's heating, heating and hotels and restaurants, bathing and other industries. The use of coal-fired boilers does not meet environmental requirements.Only use oil-fired boilers.Fuel costs more than "straw" more than ten times,To the industry caused heavy business pressure.
• In recent years,national advocate and support the development of biomass and coal utilization.Has invested more than 100 biomass power plants throughout the country.And the production of straw coal can not meet the needs of the market. Market price:450-550RMB/Ton. The formation of the situation in short supply.
• According to the international renewable resources forecast,Underground oil, natural gas and coal reserves,According to the current development and utilization rate is only enough to use about 60 years. So,straw biomass energy,It is an important direction for future renewable energy.With worldwide energy shortages.Biomass renewable energy market demand and profit margins immeasurable.

National preferential policies

• According to the country to vigorously promote and support the development and utilization of biomass energy.Processing and production of straw fuel investors, without a business license, do not have to pay a variety of fees and taxes, the local government production and processing of free production sites, reduce electricity, and provide financial support and economic subsidies preferential policies,reduce the investment burden, so that investors get more economic benefits.Production of 1 ton of biomass rods of electricity does not exceed 40 RMB.

Technical Parameter

Biomass briquette forming machine instructions

一．Operation require:



• Before starting the machine, please fill the body of the fuel tank filled with mechanical lubricants (40kg), to ensure that the oil supply is normal；
• Carefully check the power lines, to prevent leakage, the local ground wire connection to ensure good, to ensure safe use of electricity；
• Carefully check the equipment electrical appliances, motors, rotating parts of the connection parts of the bolts, screws are tight, if loose phenomenon in order to tighten；
• The raw material request:the length less than 30mm,all kinds of biomass material the moisture should keep in 5-18%;
• After starting ,the first 1-3 minutes idle the machine to check whether the normal rotation of the machine, feeding small amount of raw material firstly, after the machine can be discharged normally,then can add the raw material uniform;
• Before feeding the raw material. Please note the stones ,iron, etc.which in raw materials into the feed system, to avoid damaging the machine;
• The machine in the operation should attention to the oil supply system, check the pump pressure gauge whether can supply the oil, the pressure is 1-1.5pma, check the feeding system, reducer speed motor internal oil level, to ensure that the normal oil level;

二：Cautions:



• Please read the instructions carefully before use, and strictly in accordance with the operating procedures and orderly operation
• Can not touch the heating parts of the machine in the operate process, to avoid being burned
• Hear the machine has abnormal sound, stop immediately and checking

Package

The normal package is wooden box. If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
