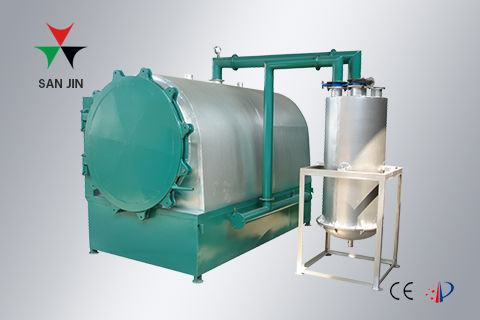

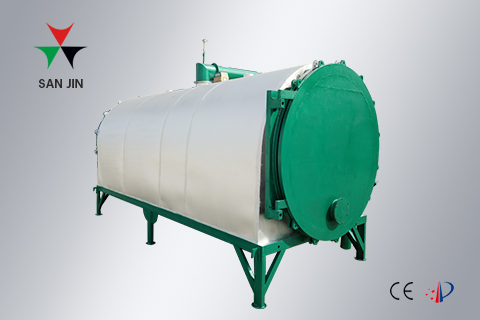

Horizontal Airflow Carbonization
Introduction
It adopts the advanced carbonized technology heat flow, carbonized rate increased significantly, The carbonized rate is 99%.And the operation is very convenient, good safety, high production efficiency, can save a lot of energy, good environmental protection performance.
Shunt can also dry burning boiler flue gas and so on. Truly the charcoal, gas and oil range of equipment is currently the world's most advanced carbonization furnace.
The Feature
- 01
Carbonization furnace is the use of horizontal manufacturing process, carbonization furnace has a three-layer structure, and the middle of light insulation materials,It is possible to keep the temperature in the furnace at all times.
- 02
The door use packing seal, not into the air, Out of carbon than the conventional carbonization furnace is much higher.
- 03
The reason is called green carbonization furnace because the stick in the carbonization process will produce a lot of light yellow combustible gas. These gases through the carbonization furnace with there own pipes can make combustible gas diversion to the charring furnace combustion zone to the second fire heating. More environmentally friendly and saving fuel.
- 04
Carbonization furnace excess gas can be used to dry the sawdust or to burn the boiler.
- 05
Carbonization furnace to end charcoal cooling time is shorter, we use the interlayer of the gap between the unit water cooling carbonization furnace natural cooling, more efficient and convenient.
- 06
Environmental air carbonization furnace Supporting a track and kiln car, use more convenient,reduce worker labor intensity.
Customers to buy this carbonization furnace really reached a simple, labor-intensive, easy to install charcoal out of carbon, cooling time greatly reduced, carbonization furnace production can be greatly improved.
Carbonization furnace can be customized according to customer requirements.(Materials and working process)
Advantage
- Due to its design principle of rotary type, reduce its carbonization time.
- It can use different material as the fuel.
- Saving energy, it can reuse the smoke produced during the process of carbonization.
- Compare with the hoist type carbonization, its biggest advantage is it doesn’t need any hoist equipment.
Technical Parameter
| Product name/Type Carbonization furnace | Heating way | Carbonize temperature |
Whole set of furnace including Dust treatment tank. Valve.digital thermometer.cooling system.etc
|
Raw material | Capacity | Carbonization time | Cooling time | Optional |
| 3m3 |
1.electricity 2.natural gas 3.liquefied gas 4.firewood
|
450°-750°
|
wood,bamboo,coconut shell.
Jute stick.etc |
750KG-3500KG/batch | 6-10hours
According to the specific type of furnace |
2-4hours Water cooling and wind cooling |
1. Dust treating system .Automate the operating system |
|
| 5m3 | ||||||||
| 10m3 | ||||||||
|
15m3 |
Package
The normal package is wooden box. If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
