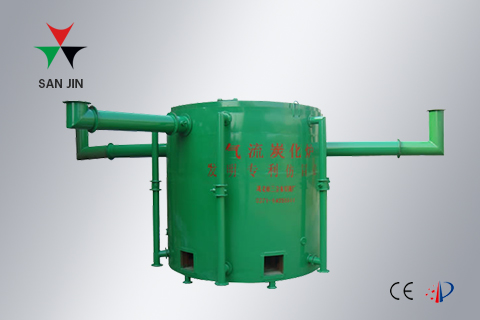

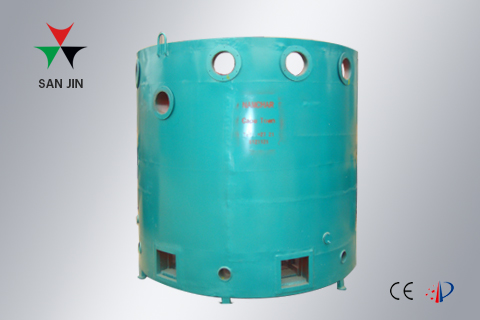

Hoist Type Energy-saving Carbonization Furnace
Introduction
The charcoal can be hoisted outside, in this way the cooling time can be reduced much, thus, the productive efficiency increases a lot. It is the ideal choice for mass production of charcoal.
This type of stove adopts the structure of unique air storage chamber, to fully reuse the smoke produced during the process of carbonization. And 60% of the redundant smoke can be used in drying and carbonizing, saving much fuel during the whole process, and increasing the enterprise revenue.

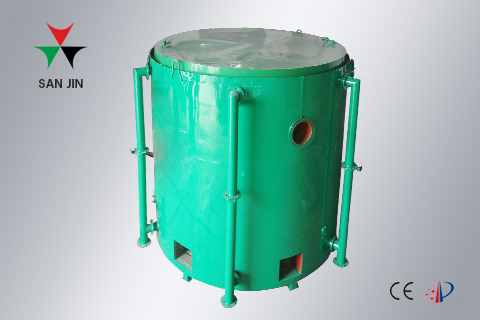

The gas produced inside the carbonization chamber flows down through the vertical pipes visible on the outside of the stove. These pipes deliver the gas to the firebox under the chamber to aid combustion and continue heating the carbonization chamber from the outside.
Advantage
- Reduce its carbonization time.
- It can use different material as the fuel.
- 3. Saving energy, it can reuse the smoke produced during the process of carbonization.
Technical Parameter
| Model | Final production of charcoal | Time of carbonization | Weight(including the inner pot) |
Dimension |
| DZ-500 | 500 Kgs | 6-8 h | 2.8T | 1.92*1.92*2.07m |
| DZ-1000 | 2500 Kgs | 6-8 h | 3.7T | 2.2*2.2*2.22m |
Package
The normal package is wooden box. If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
